EK-X 10 & PXV Series

Product Overview

The STILL EK-X 10 and PXV series are advanced vertical order pickers designed for high-performance picking operations in both wide and very narrow aisle (VNA) warehouses. With picking heights of up to 14.5 meters and load capacities up to 1,200 kg, these trucks represent a new dimension in efficiency, safety, and ergonomics.

Developed by STILL GmbH, the EK-X 10 is a compact and flexible solution for medium heights, while the PXV series is a high-end VNA order picker offering maximum reach, intelligent navigation, and semi-automated operation via iGo pilot systems.

Available models:

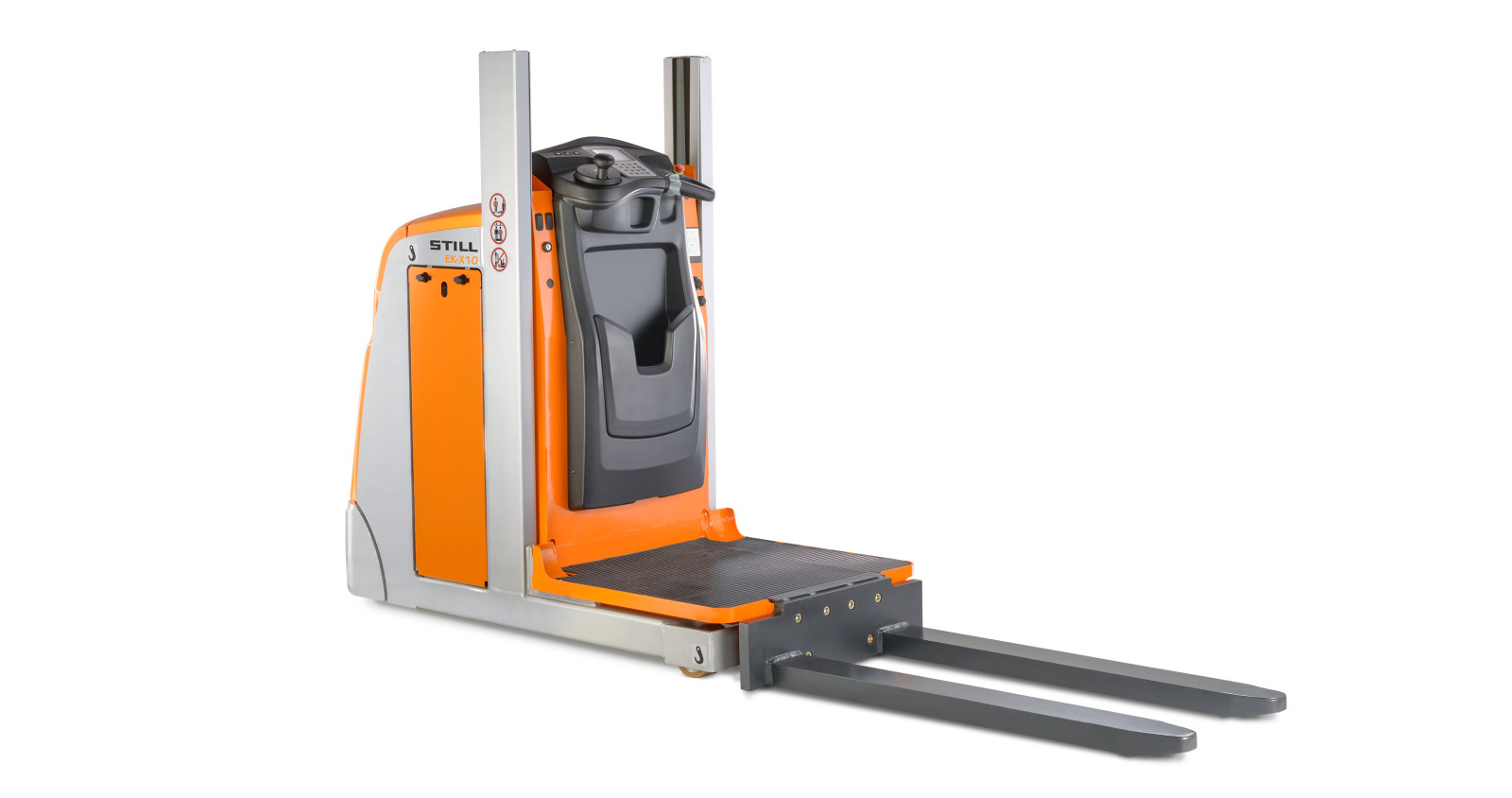

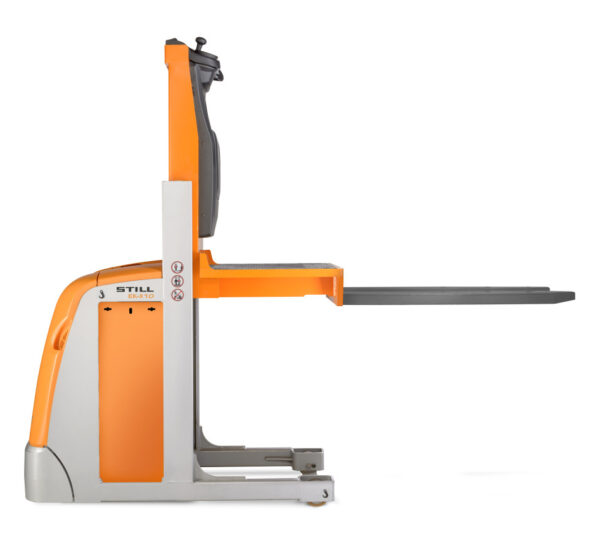

• EK-X 10 (Single mast / Telescopic mast / With or without additional lift)

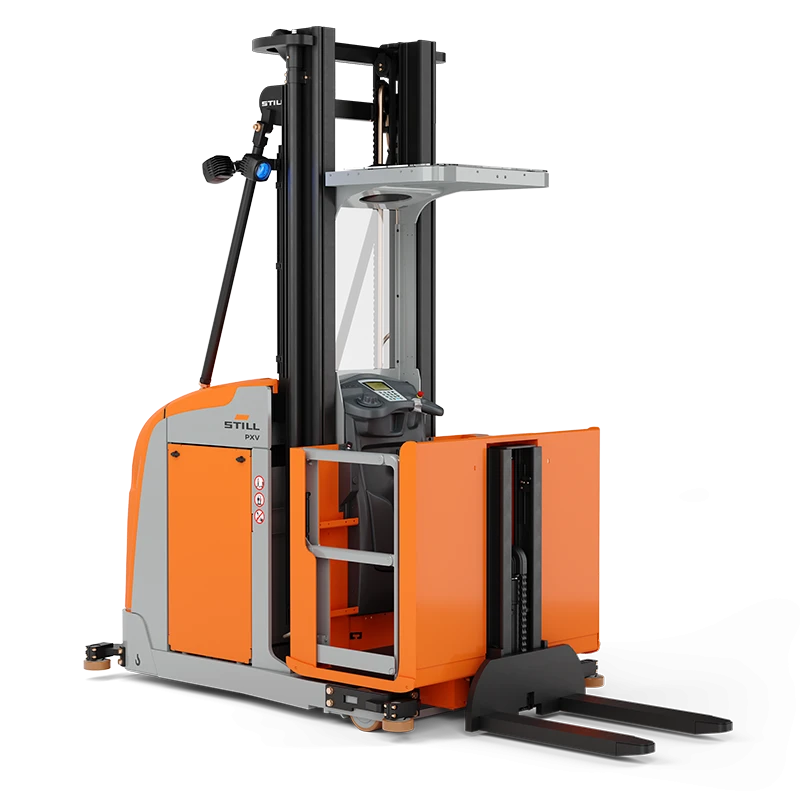

• PXV M (up to 1,000 kg)
• PXV (up to 1,200 kg)

Key Features & Benefits

1. High Performance Order Picking

• Load capacity up to 1,200 kg
• Picking heights up to 14.5 meters
• Fast travel speed up to 13 km/h (PXV)
• Simultaneous lifting and lowering of main and auxiliary lift
• Excellent handling performance in narrow aisles

2. Intelligent Assistance Systems

• STILL iGo pilot navigation for semi-automated routing and positioning
• OptiSpeed system adjusts speed based on lift height for maximum safety
• Predictive Braking System (PBS) detects obstacles and prevents collisions
• Mobile Personal Protection System (PPS) detects people in narrow aisles
• Automatic speed reduction and braking based on environment

3. Ergonomic Operator Comfort

• Spacious operator cabin with shock-absorbing floor
• Tilting side barriers for easy access to goods deep in racks
• Intuitive controls via steering wheel or control knob
• Flexible mounting system for scanner, terminal, and printer
• Reduced fatigue during long shifts with optimized working position

4. High Safety Standards

• Clear visibility through optimized mast design
• Laser scanner-based safety systems with up to 9 m detection range
• Automatic braking when obstacles or people are detected

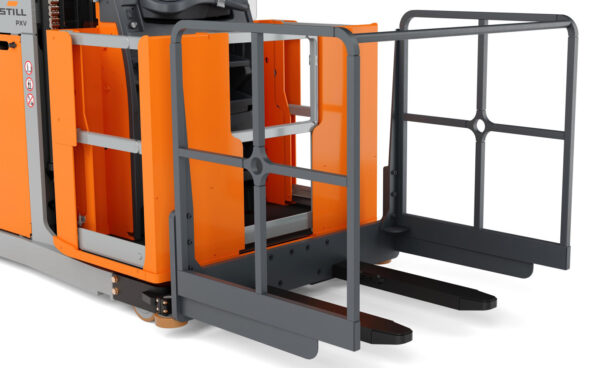

• Optional protective cage for accessible pallet operations
• Full compliance with safety standards for VNA operations

5. Compact & Efficient Design

• Optimized for very narrow aisle (VNA) warehouses
• Excellent space utilization with maximum vertical reach
• Smooth mast transitions for stable and precise operation
• Compact chassis widths for different warehouse layouts

6. Energy Efficiency & Availability

• 24V and 48V battery options (lead-acid or lithium-ion)
• Regenerative braking system for energy recovery
• Fast charging access for high availability
• Low-maintenance AC drive and lift motors
• Suitable for multi-shift operations

7. Flexible Application & Connectivity

• Modular design with multiple mast configurations (single, telescopic, triplex)
• Integration with Warehouse Management Systems (WMS) via iGo pilot
• FleetManager 4.x for access control and fleet monitoring
• Customizable cabins and equipment options
• Suitable for a wide range of warehouse applications

Applications

The STILL EK-X 10 and PXV vertical order pickers are ideal for:

1. Very Narrow Aisle (VNA) Warehousing

• High-density storage systems
• Maximum utilization of vertical space

2. E-commerce & Distribution Centers

• High-speed order picking operations
• Efficient handling of large SKU volumes

3. High Rack Storage Facilities

• Picking and handling at extreme heights (up to 14.5 m)
• Safe and precise operation in tall racking systems

4. Industrial & Manufacturing Logistics

• Internal logistics and material supply
• Flexible handling of various load types
