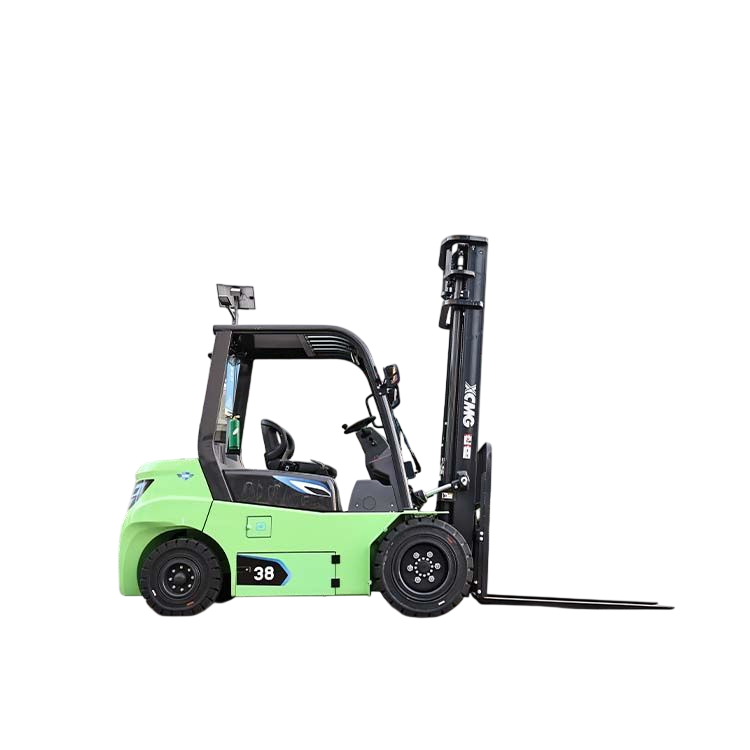

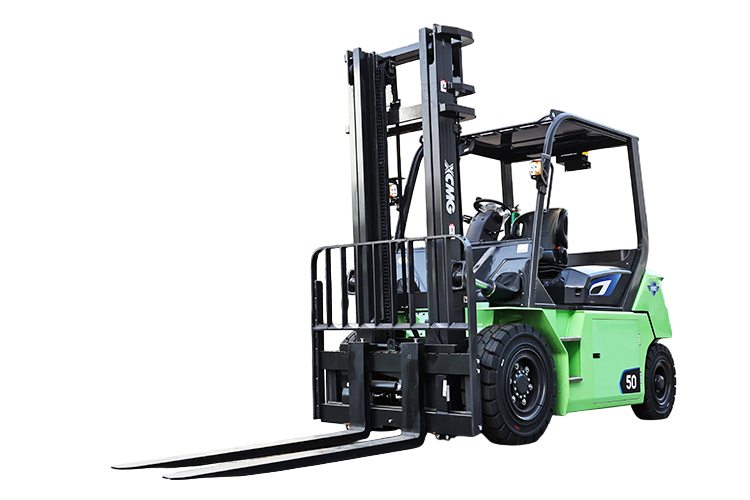

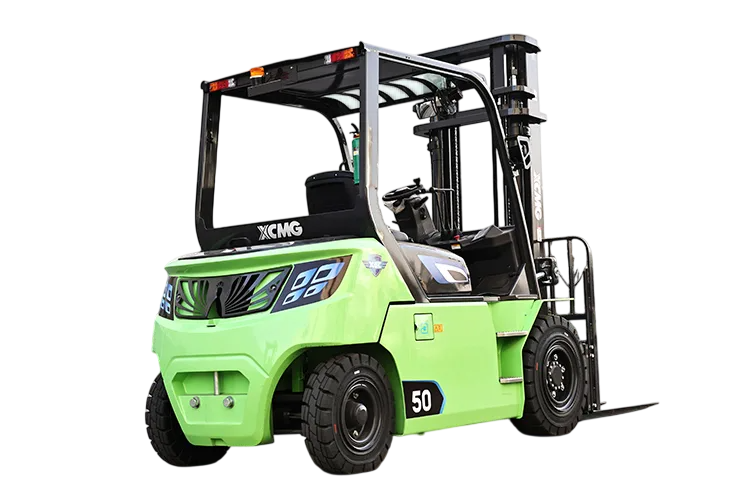

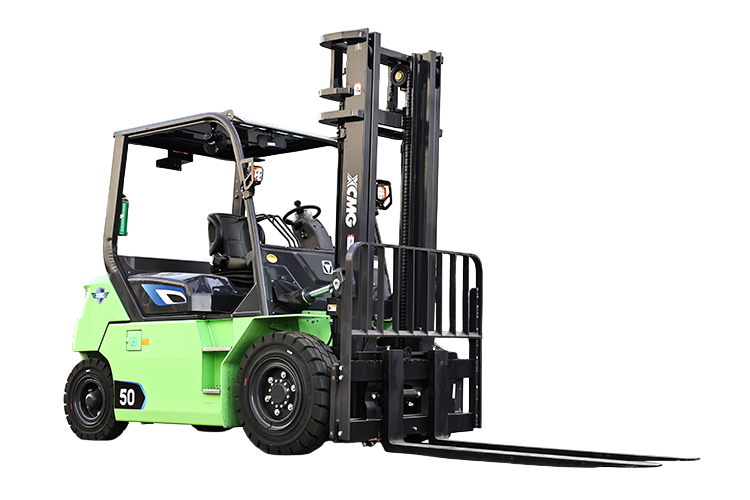

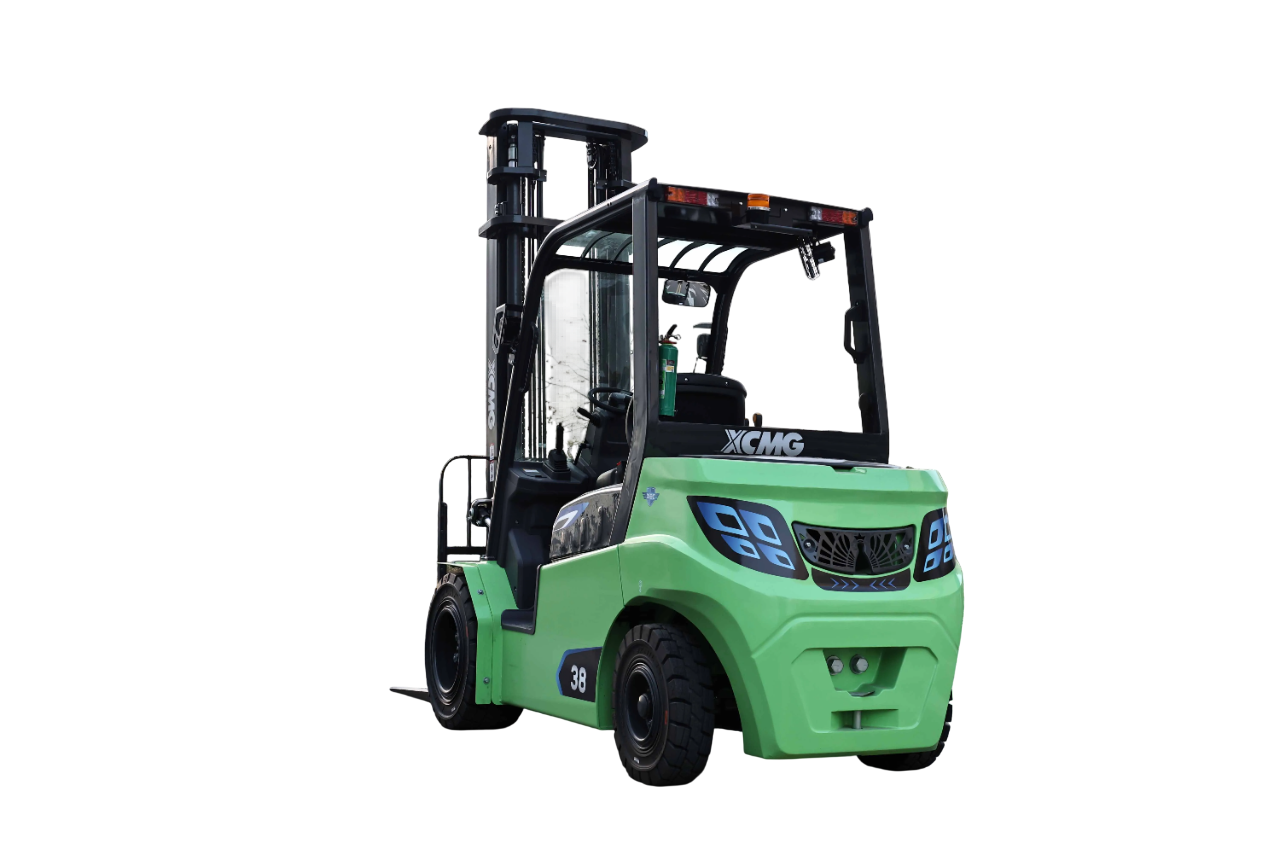

Peacock Series XVB40/XVB45/XVB50

The XCMG Peacock Series Electric Counterbalanced Forklift (4.0–5.0t) brings heavy-duty electric lifting performance to the mid-tonnage segment. Engineered by XCMG Special Construction Machinery Co., Ltd. with proprietary XEC electronic control technology and permanent magnet synchronous motors, this series delivers double-20 benchmark performance while maintaining energy consumption at double-15 levels — without excessive heat, without safety compromise.

✅ KEY FEATURES

– High Performance without Compromise – XCMG’s XEC electronic control intelligently segments and matches power to real working conditions. The result: performance exceeding double-20 with energy consumption better than double-15 machines.

– All-Weather Operation (IP65) – Electrical components are fully IP65-rated. Proven through: heavy-rainfall rain test (15 min), 500mm wading pool test (15 min), highland operation at 4,500m altitude at -20°C (5-day continuous), and cold storage endurance at -20°C (12 hours parking + 6 hours intermittent operation).

– Three-Electric Liquid Cooling System (Standard) – Motor, electronic controller, and battery are all liquid-cooled as standard, enabling sustained high-intensity operation and ultra-fast full charge in as little as 1 hour.

– High Voltage + National Standard Charging Gun – Compatible with standard EV car charging stations for maximum deployment flexibility on-site.

– PES 3-Speed Mode – Switch between Powerful (P), Economical (E), and Energy-saving (S) modes. Speed-follow steering function makes spot-turning light and high-speed driving more controlled and secure.

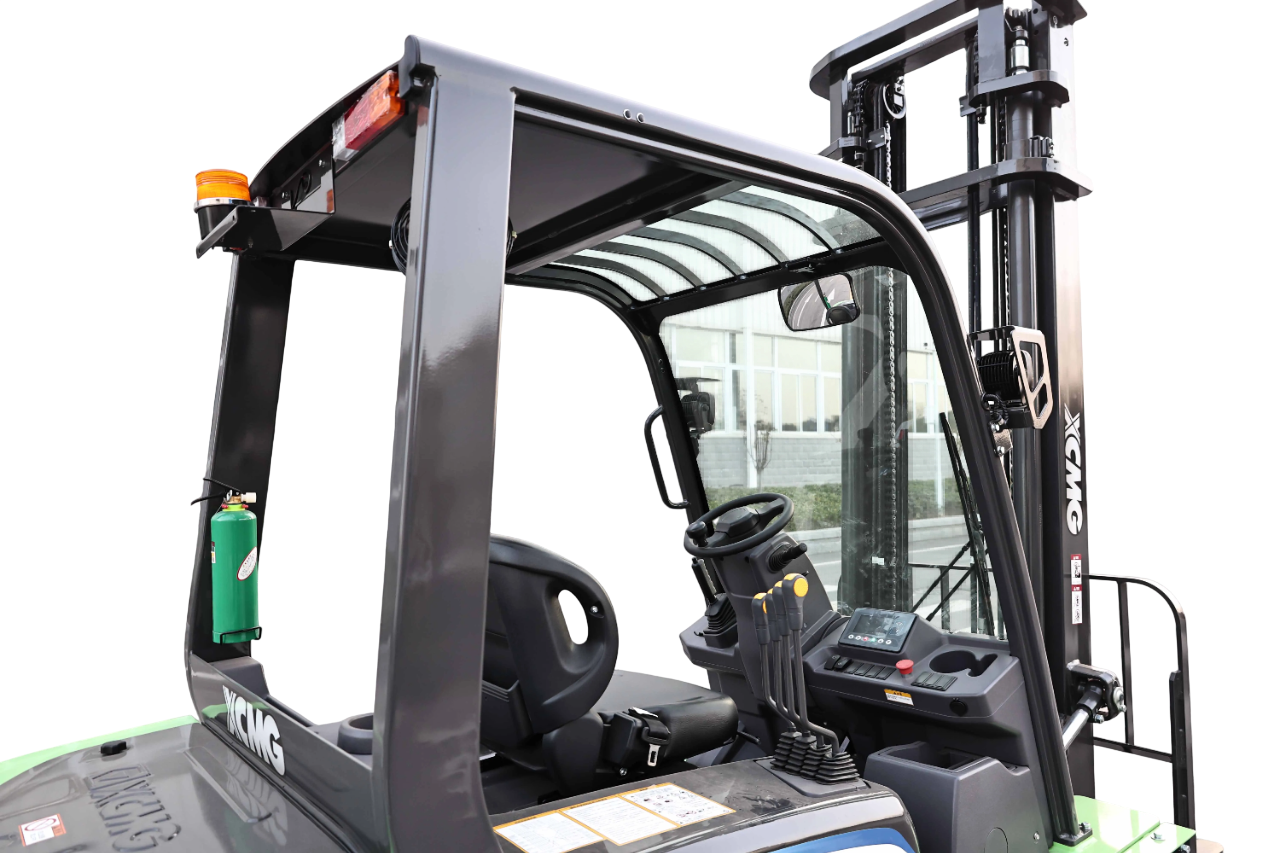

– Ergonomic Comfort Cab – Fully suspended shock-absorbing seat, integral overhead guard with shock-absorbing arrangement, generous head and foot space, ratcheting hand brake, cup holder, phone holder, USB interface, color screen instrument panel, and expansion-ready button layout.

– XCMG Guardian Safety System – Full OPS ramp control (360° protection): release pedal on ramp → auto-park 3–5 seconds → slow reverse. Triple battery safety: MSD quick-disconnect, dedicated charging/discharging relay system with fuse protection, and BMS voltage interlock cutting power to all touchable conductors when connectors are improperly seated.

– High Intelligence (Optional) – Industrial vehicle management platform, advanced driver assistance system (ADAS), driver behavior analysis, and driver identification available as optional upgrades.

🏭 APPLICATIONS

Mid-to-heavy warehousing and logistics, port container yards, steel and metal processing, paper and timber handling, cold-chain facilities, manufacturing plants, and operations requiring reliable multi-shift 24/7 performance with fast charging turnaround.

Available in 4 configurations: 4.0t / 4.5t / 5.0t (500mm load center) / 5.0t-J (600mm load center)
