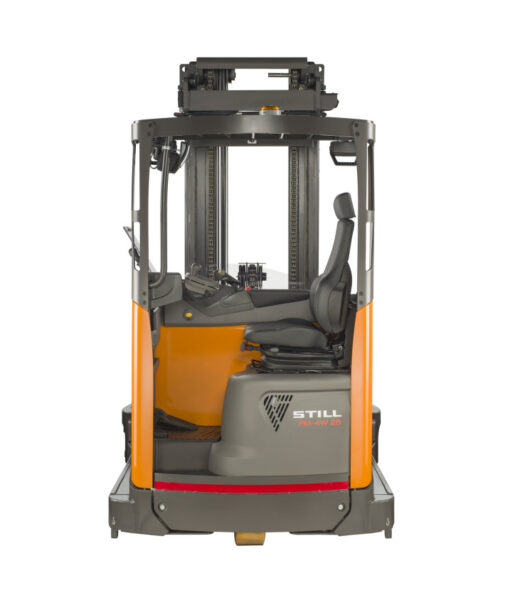

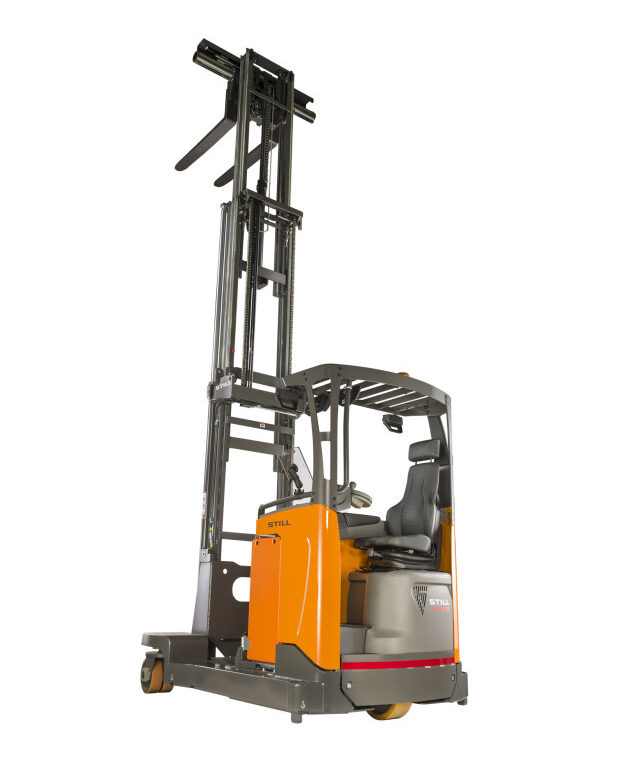

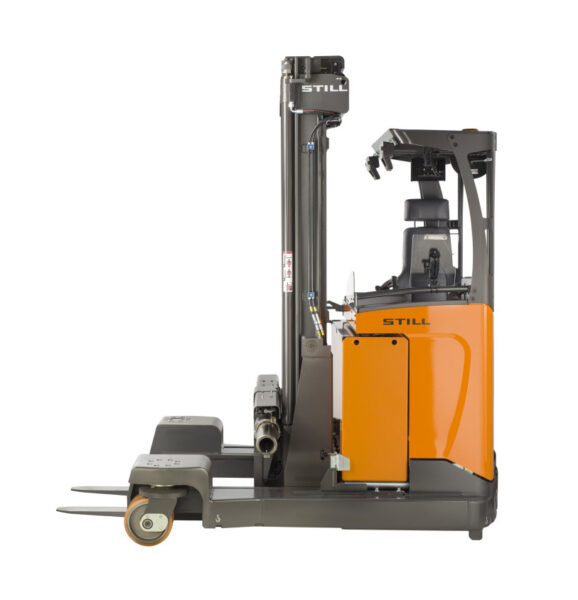

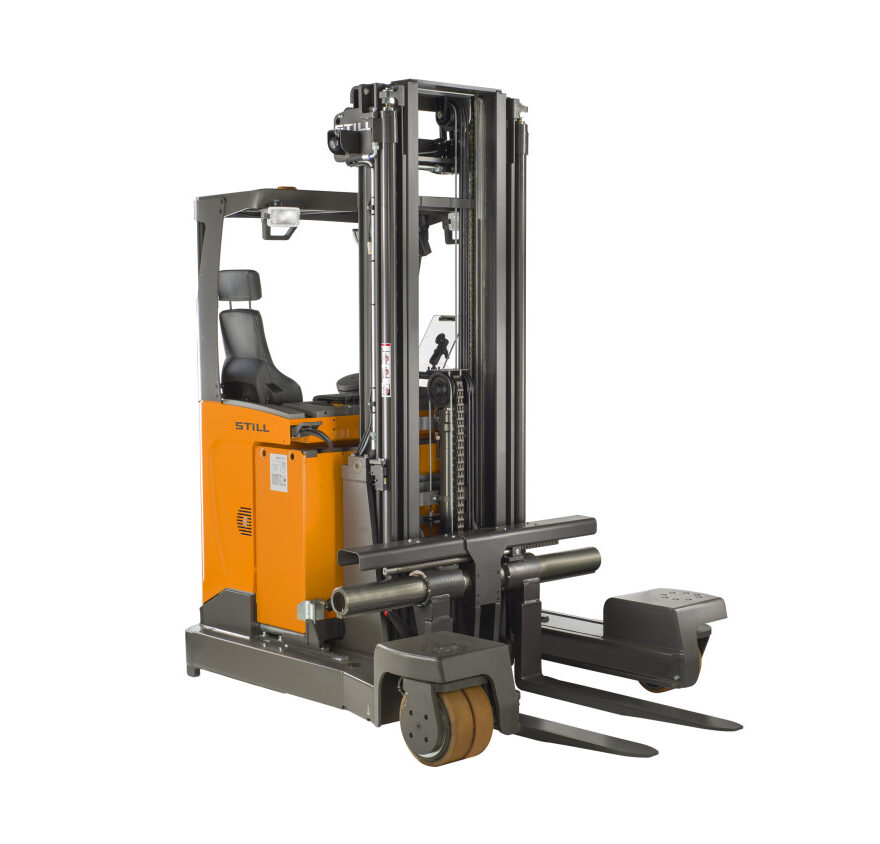

FM-4W 20 / FM-4W 25

Product Overview

The STILL FM-4W 20 and FM-4W 25 are advanced 4-way reach trucks designed for maximum flexibility and efficiency in narrow aisle warehouse operations. Thanks to their unique four-way travel capability, these trucks can move forward, backward, and sideways, making them ideal for handling long and bulky loads such as pipes, timber, and profiles.

With lifting heights up to 9.5 meters and load capacities up to 2.5 tons, the FM-4W series offers a powerful, space-saving solution for modern intralogistics environments.

Available models:

• FM-4W 20
• FM-4W 25

Key Features & Benefits

1. 4-Way Travel – Maximum Flexibility

• Moves in all directions: forward, backward, and sideways
• Ideal for handling long loads in narrow aisles
• Optimizes warehouse space utilization
• Reduces the need for wide aisles

2. High Performance & Lifting Capability

• Load capacity up to 2,500 kg
• Lift height up to 9,650 mm
• High residual load capacity (e.g., 1,000 kg at full height)
• Travel speed up to 13 km/h
• Strong acceleration and smooth operation

3. Precision Handling & Control

• Wheels rotate 90° instantly for precise sideways movement
• Proportional hydraulic valve system for smooth control
• Integrated weight and height display for accurate handling
• Lift height pre-selection and assistance systems available

4. Excellent Ergonomics

• Fully adjustable operator cabin:
  • Seat, armrests, steering wheel, and footplate
• Comfortable tilt seat (up to 18°) for better upward visibility
• Ergonomic joystick or fingertip control system
• Reduced operator fatigue during long shifts

5. Compact Design for Narrow Aisles

• Aisle width from approx. 2,787 mm
• Compact chassis with reach function
• Ideal for high-density storage systems

6. High Safety Standards

• Curve Speed Control for safer cornering
• Load-dependent speed limitation
• Fork protection system prevents collision with wheel arms
• Excellent visibility through optimized mast and overhead guard
• Easy and safe entry with large step and handle

7. Energy Efficiency & Sustainability

• Regenerative braking system recovers energy
• Low energy consumption (~8.5 kWh/h)
• Efficient battery system (465–930 Ah)
• Optimized resource usage for long operating cycles

Applications

The STILL FM-4W series is ideal for:

1. Narrow Aisle Warehousing

• High-density storage systems
• Maximizing warehouse space utilization

2. Handling Long Materials

• Timber, pipes, steel bars, profiles
• Furniture and construction materials

3. Logistics & Distribution

• Pallet and container handling
• Fast loading/unloading operations

4. Manufacturing

• Internal transport of long or bulky components
• Production line supply
