FM-X 10 / 12 / 14 / 17 / 20 / 25 / Li-Ion / iGo

Product Overview

The STILL FM-X Series is a high-performance sit-on reach truck designed for precision handling, maximum efficiency, and superior ergonomics in warehouse operations. With lifting heights of up to 13 meters and excellent residual load capacity, the FM-X delivers outstanding performance for high-rack storage, long-distance transport, and replenishment tasks.

Equipped with innovative technologies such as Active Load Stabilisation (ALS) and advanced Li-Ion battery systems, the FM-X ensures faster handling cycles, reduced waiting times, and optimal energy efficiency. Its modular design and automation-ready iGo systems make it a future-proof solution for modern intralogistics.

Available models:

FM-X 10
FM-X 12
FM-X 14
FM-X 17
FM-X 20
FM-X 25
FM-X Li-Ion

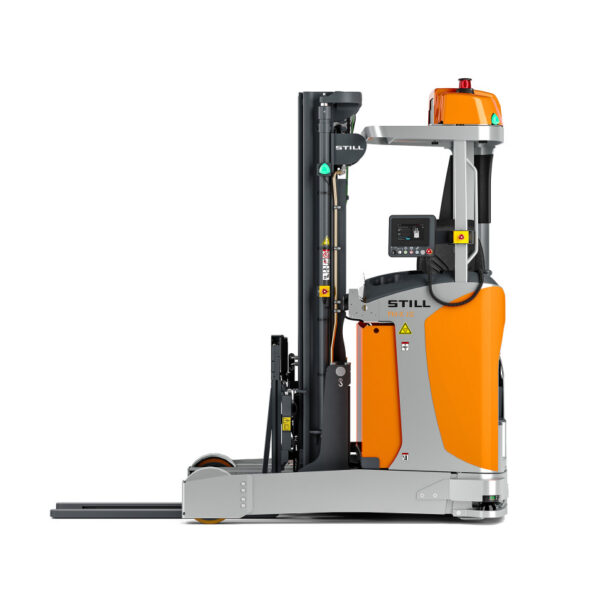

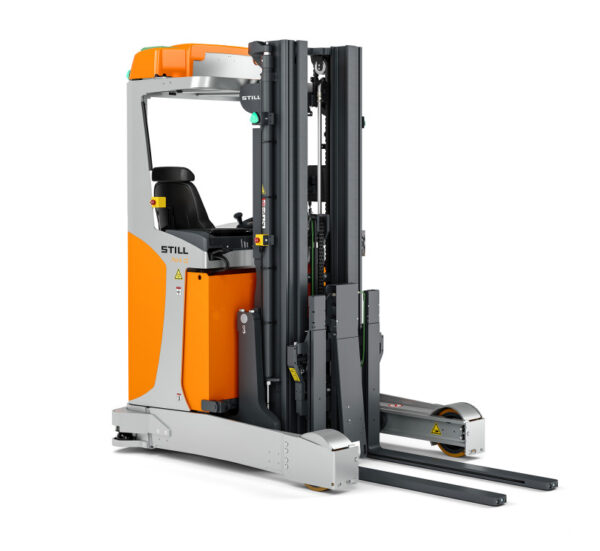

FM-X iGo (automated version)

Key Features & Benefits

1. High Performance & Lifting Capability

Load capacity from 1,000 kg to 2,500 kg
Lift height up to 13,000 mm
Residual load capacity up to 1,000 kg at full height
Travel speed up to 14 km/h
Fast lifting and lowering speeds for high throughput

2. Active Load Stabilisation (ALS)

Reduces mast vibrations at high lift heights
Up to 80% reduction in waiting time at the rack
Faster handling cycles and increased productivity
Improves safety and protects goods

3. Advanced Ergonomics & Operator Comfort

Fully adjustable driver workspace (seat, steering wheel, footplate)
Optional reclining and cushioned seat for better comfort
Joystick 4Plus or fingertip control system
Excellent visibility through optimized mast design
Reduced operator fatigue during long shifts

4. Intelligent Control & Precision Handling

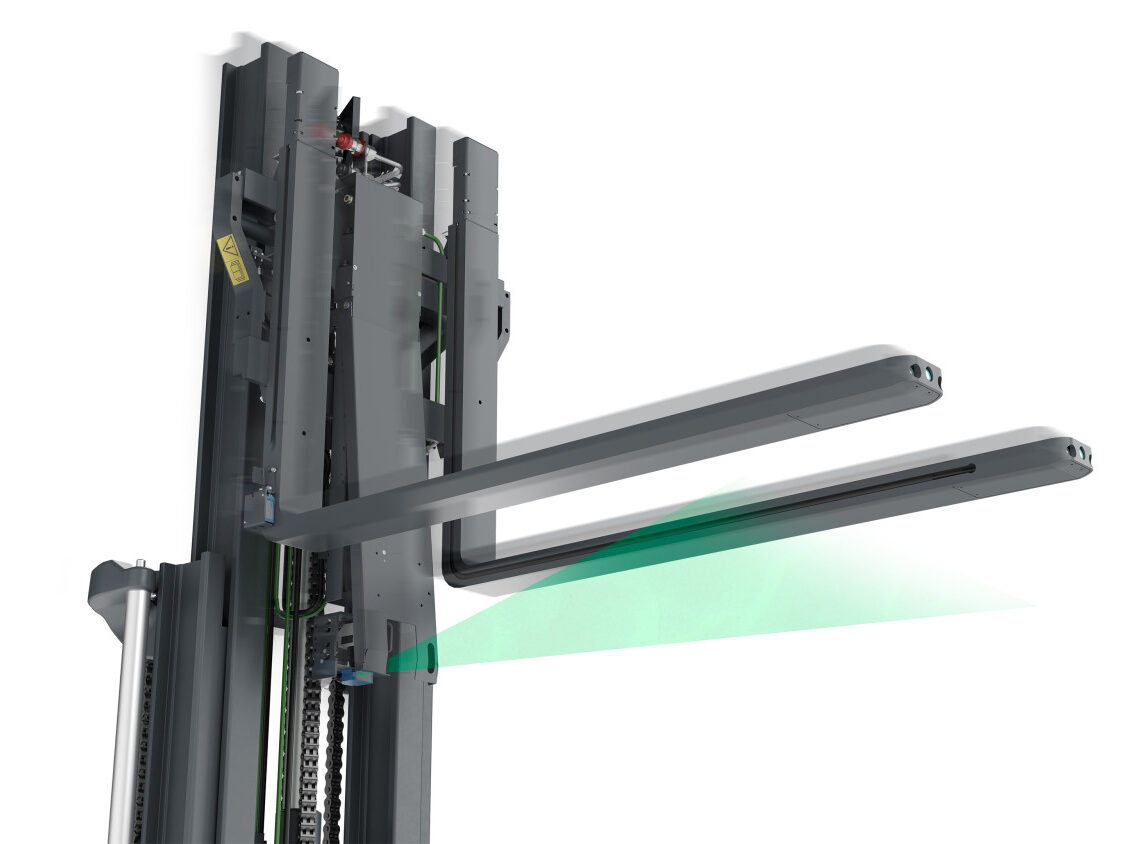

Optical LED lift height sensor for precise positioning
Optional Easy Target / Easy Target Plus lift height pre-selection
Smooth and precise hydraulic control
Side-shift mast for optimal load visibility and positioning

5. Energy Efficiency & Li-Ion Technology

Available with modern Li-Ion batteries
Opportunity charging (50% charge in approx. 30 minutes)
Battery capacity up to 930 Ah
Low energy consumption (~2.9–3.4 kWh/h)
High availability for multi-shift operations

6. Automation & Industry 4.0 Ready (FM-X iGo)

Automated transport and storage operations
Integration with warehouse management systems (WMS)
Laser navigation and sensor-based control
Improved process reliability and reduced human error
Scalable automation for future expansion

7. High Safety Standards

Curve Speed Control for safe cornering

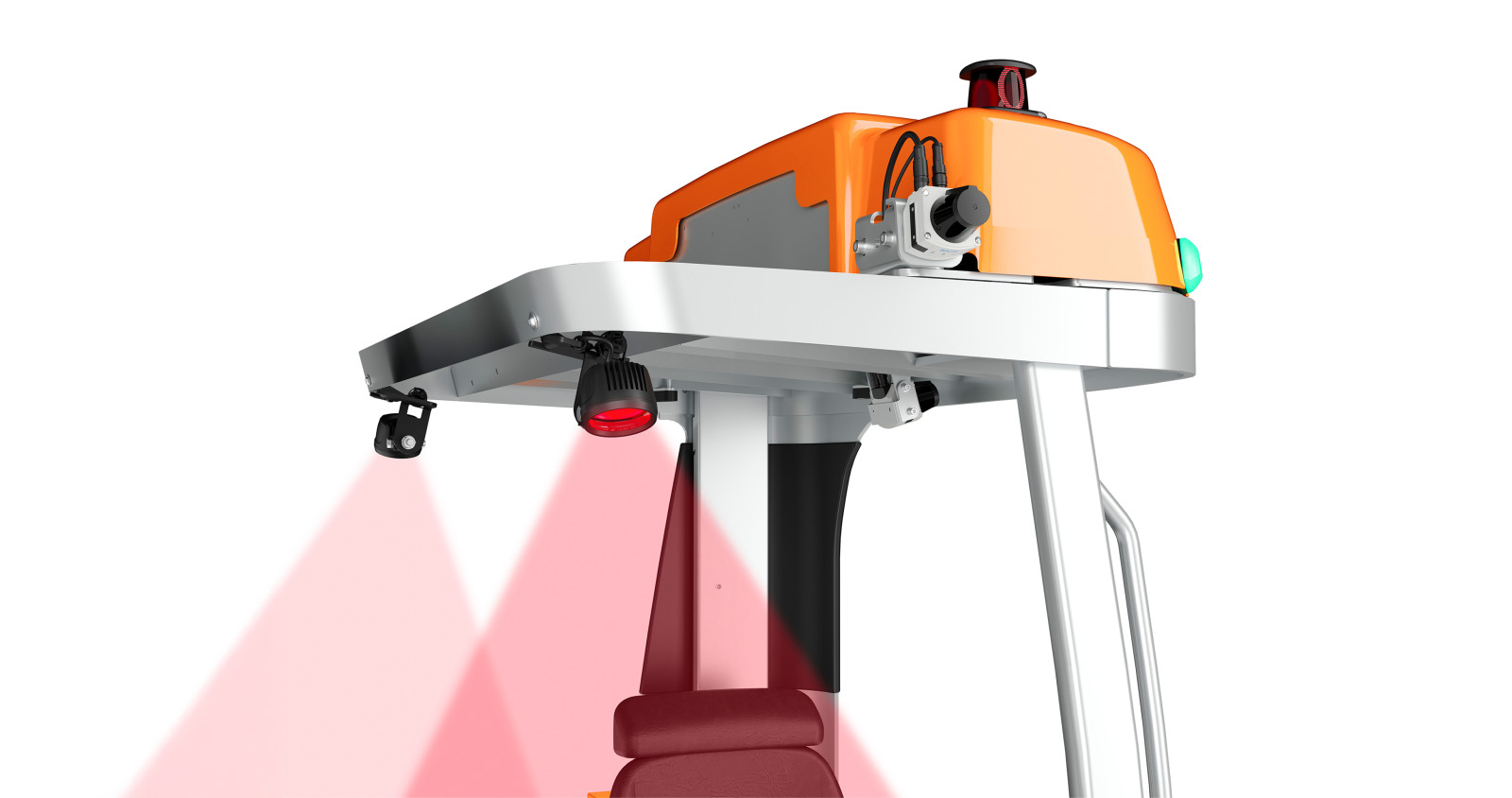

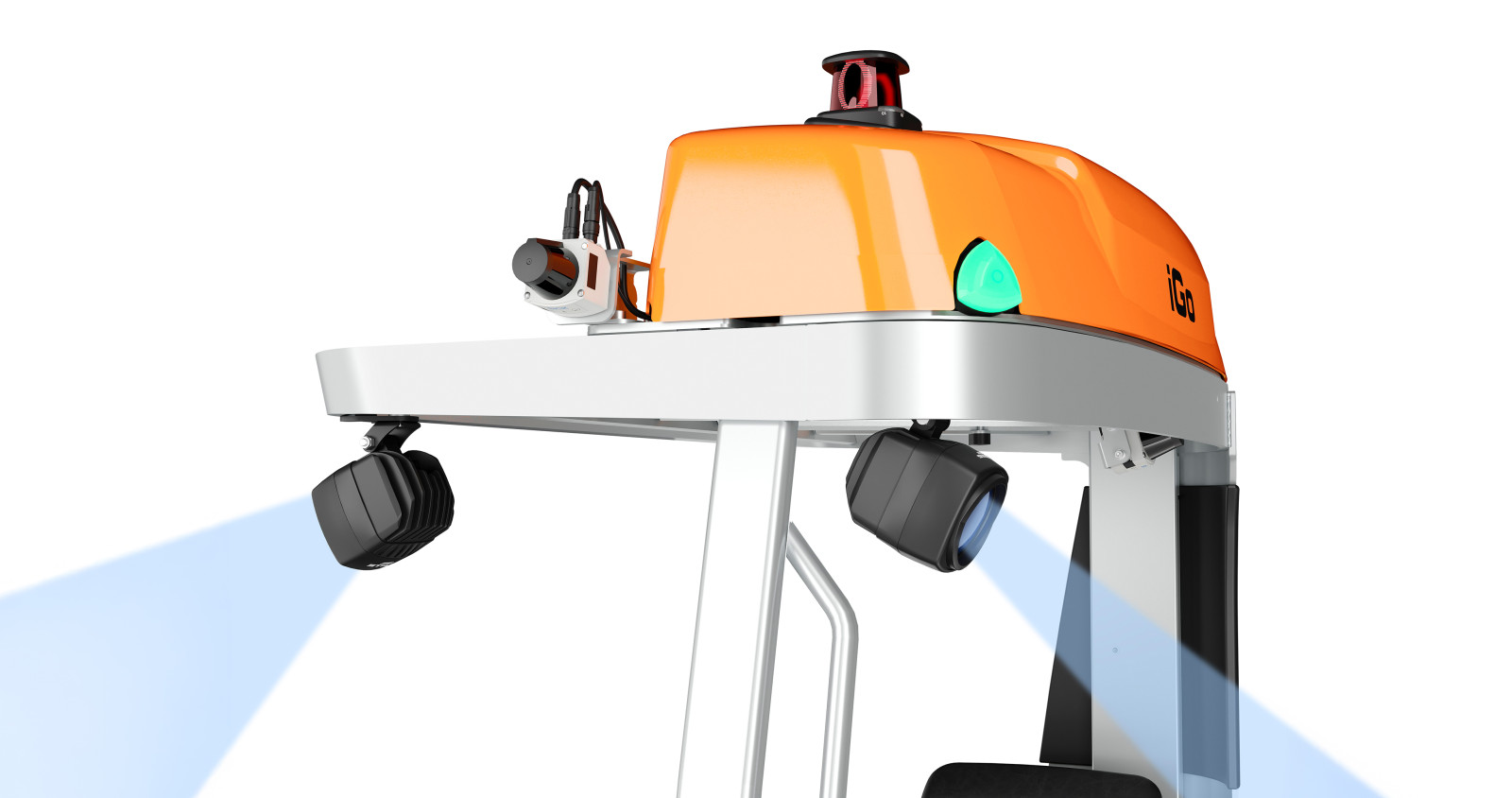

Optional STILL Safety Light for enhanced visibility

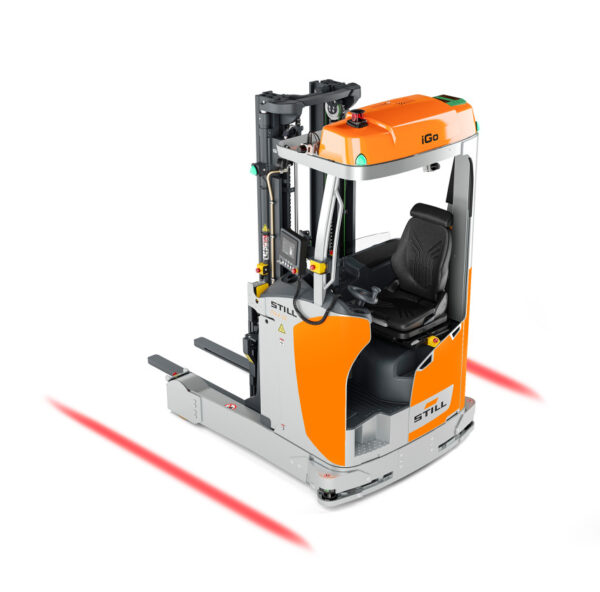

Laser scanners and sensors for obstacle detection (iGo models)
Emergency stop and warning systems
Excellent all-round visibility for safe operation

8. Flexible & Modular Design

Wide range of models and configurations
Multiple chassis and mast options
Suitable for various warehouse layouts
Manual and automated operation possible

Applications

The STILL FM-X series is ideal for:

1. High-Rack Warehousing

Storage and retrieval up to 13 meters
Efficient use of vertical storage space

2. Logistics & Distribution Centers

Fast pallet handling and replenishment
High throughput operations

3. Manufacturing & Production

Supply of production lines
Transport of materials over long distances

4. Automated Warehousing (Industry 4.0)

Driverless transport with FM-X iGo
Integration into automated material flow systems
Improved efficiency and process reliability

5. Wide-Aisle Warehousing

Flexible operation in standard warehouse layouts
Handling of medium to heavy loads
