Very Narrow Aisle Truck NXV (Turret Head / Telescopic Fork)

Product Overview

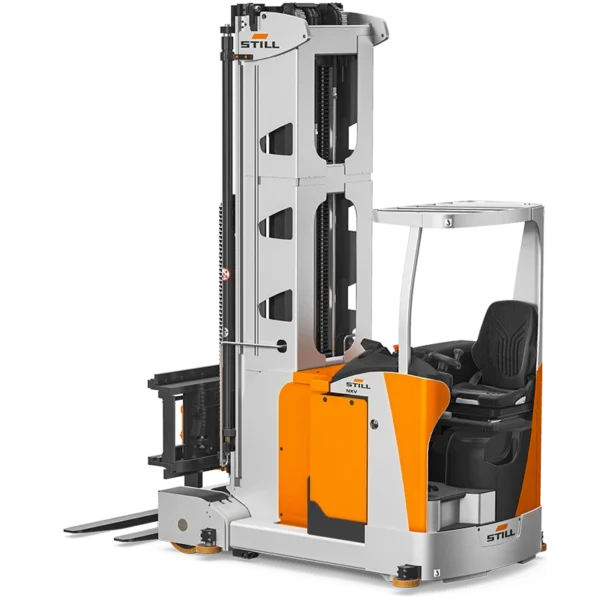

The STILL NXV is a high-performance very narrow aisle (VNA) truck designed for maximum storage density and efficient material handling in high-bay warehouses. With load capacities up to 1,500 kg and lifting heights up to 13.8 meters, the NXV is the ideal solution for operations requiring precision, safety, and productivity in confined spaces.

Developed by STILL GmbH, the NXV combines advanced assistance systems, ergonomic design, and flexible configurations such as turret head or telescopic fork. It is engineered to deliver superior handling performance in narrow aisles and high racking environments.

Available models:

• NXV with turret head (triplex mast, without auxiliary lift)
• NXV with turret head (triplex mast with auxiliary lift)
• NXV with telescopic fork (telescopic mast)

Key Features & Benefits

1. Powerful High-Bay Performance

• Load capacity up to 1,500 kg
• Lifting height up to 13.8 meters
• High handling capacity even at extreme heights
• Optimized for maximum warehouse space utilization
• Excellent stability for high-rack operations

2. Intelligent Assistance Systems

• OptiSpeed system adjusts speed depending on lift height
• Active Load Stabilisation (ALS) improves stability and increases throughput
• Predictive Braking System (PBS) detects obstacles and prevents collisions
• Mobile Personal Protection System (PPS) detects people in aisles
• iGo pilot navigation for semi-automated routing and positioning

3. Ergonomic Operator Comfort

• Innovative Joystick 4Plus for precise one-hand control

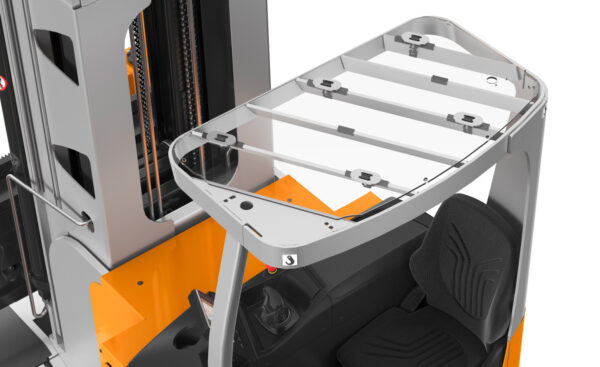

• Spacious, shock-absorbing operator cabin
• STILL Easy Control display with customizable settings
• Reduced fatigue through intuitive and responsive controls
• Optimized operator posture for long working shifts

4. High Safety Standards

• Laser scanner systems with detection range up to 8–9 meters
• Automatic braking and speed reduction in hazardous situations
• STILL Safety Light for improved visibility
• Camera systems and cross-line laser for precise load positioning
• Full compliance with VNA safety standards

5. Compact & Efficient Design

• Designed specifically for very narrow aisles (VNA)
• Minimal working aisle width starting from approx. 1380 mm

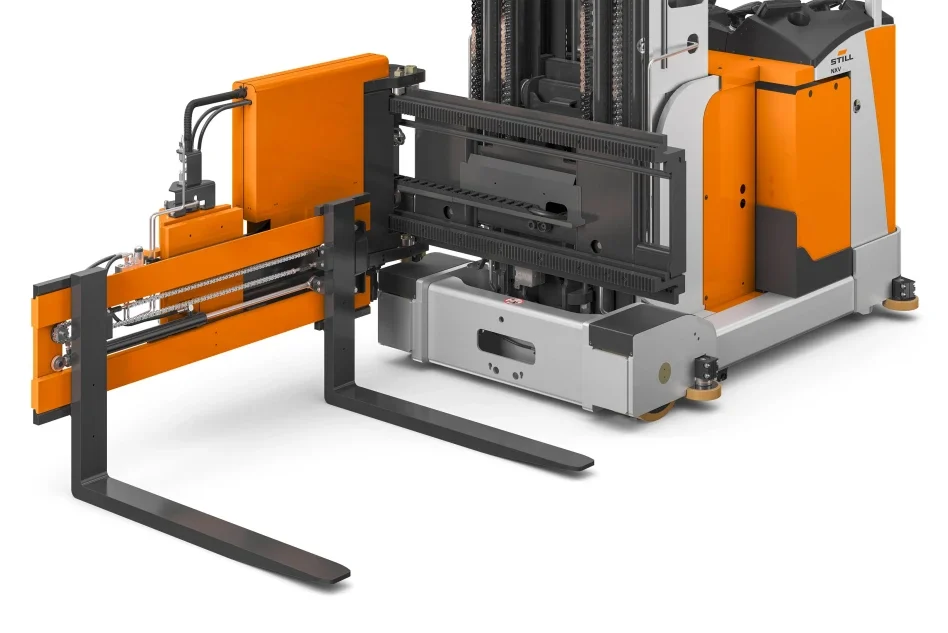

• Turret head allows picking from both sides of racking
• Telescopic fork enables fast lateral load handling
• Ideal for high-density storage systems

6. Energy Efficiency & Availability

• Powerful 48V battery system with up to 1120 Ah capacity

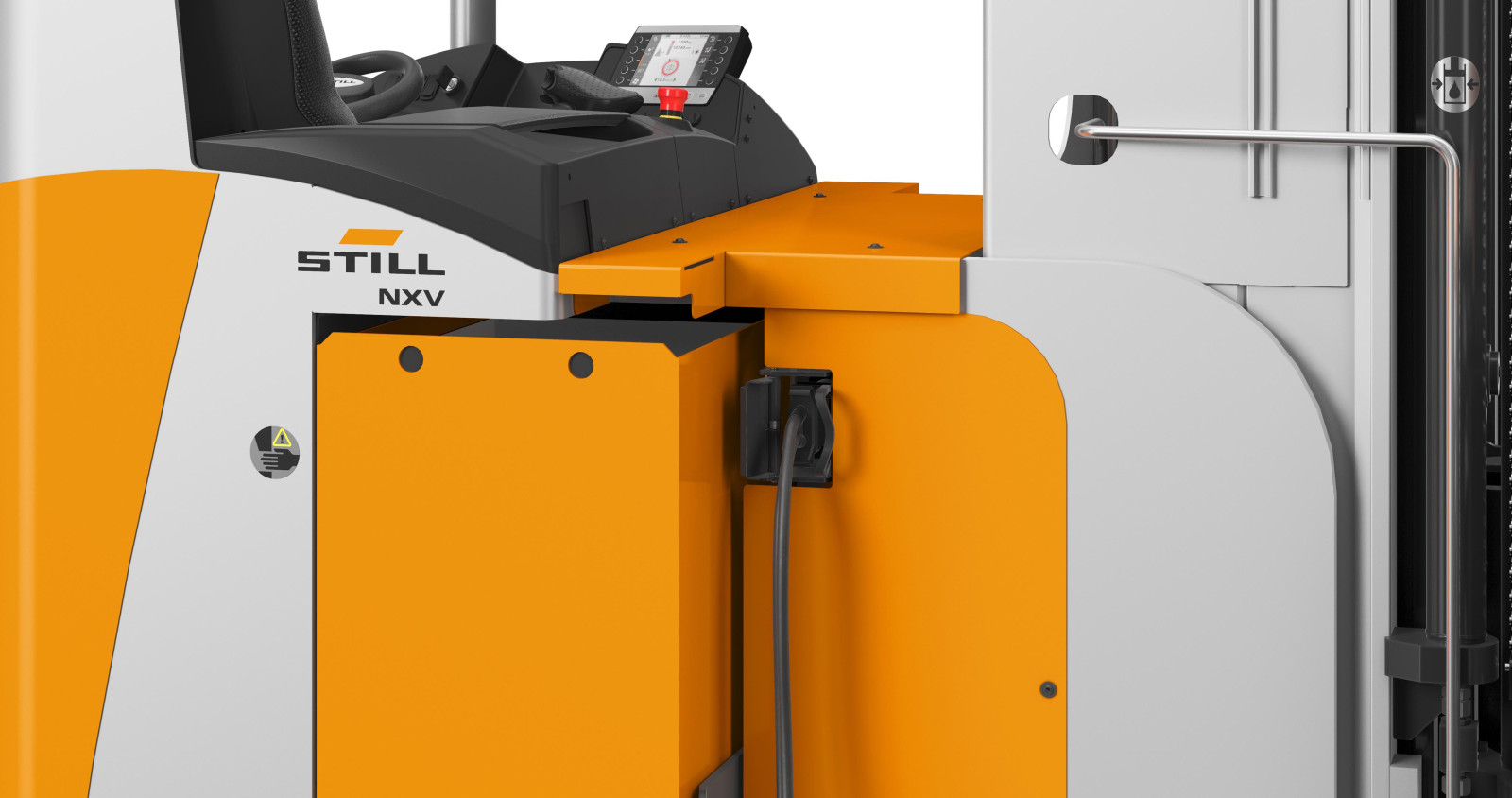

• Lithium-ion option with opportunity charging
• Regenerative braking system for energy recovery
• Low maintenance AC drive technology
• Suitable for intensive multi-shift operations

7. Flexible Application & Configuration

• Choice of turret head or telescopic fork
• Modular design tailored to warehouse requirements
• Multiple mast configurations (triplex, telescopic)
• Integration with WMS via iGo pilot
• Compatible with FleetManager 4.x for fleet control

Applications

The STILL NXV is ideal for:

1. Very Narrow Aisle Warehousing (VNA)

• High-density storage systems
• Maximum vertical and horizontal space utilization

2. High Rack Storage Operations

• Handling goods at heights up to 13.8 meters
• Precise storage and retrieval in tall racking systems

3. Distribution Centers & Logistics Hubs

• High-throughput pallet handling
• Efficient order picking and storage processes

4. Industrial & Manufacturing Facilities

• Internal logistics and material flow optimization
• Safe handling of medium to heavy loads
